Voltage covers: 2V
Capacity: 100Ah-3000Ah.
Design life at floating condition: 20 years @ 20 °C/68 °F.

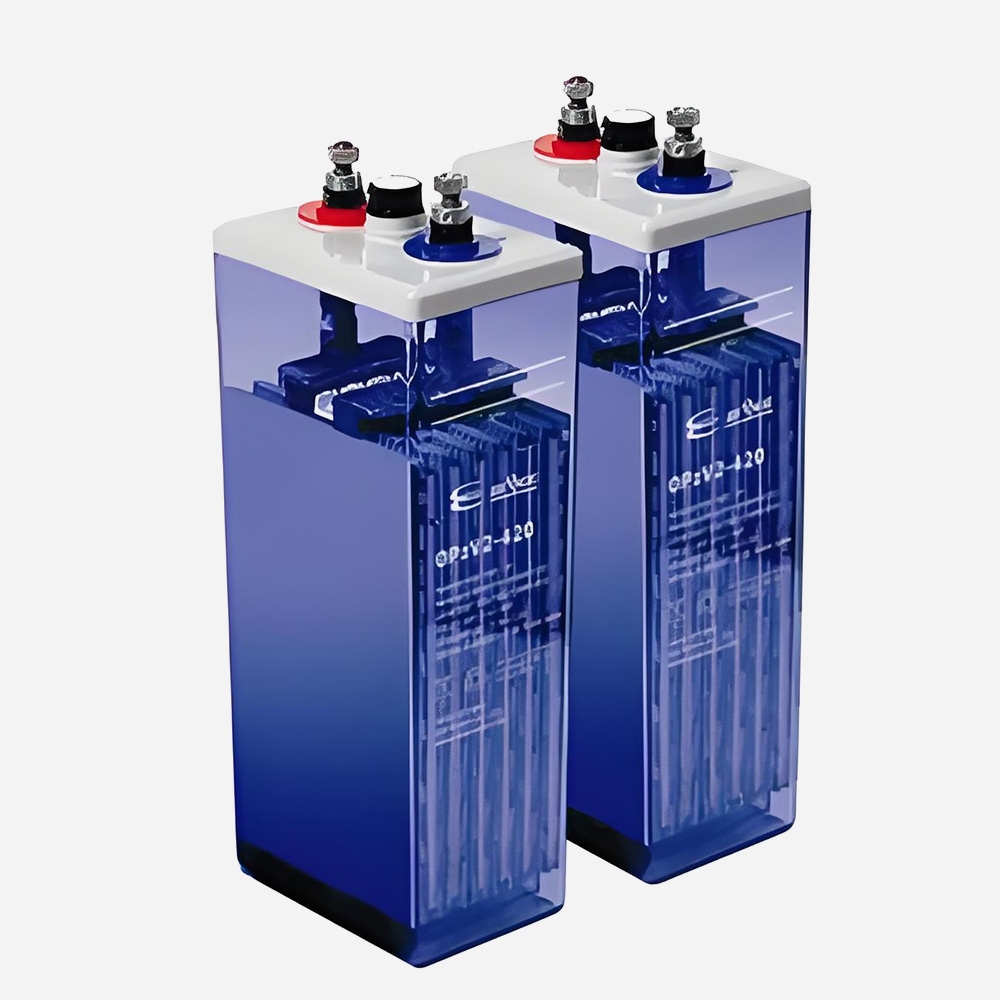

The OPzS battery is a traditional tubular plate flooded battery which offers 20 years design life with a cycle life of 1800 cycles at 80% DOD according to IEC60896-11.This range is most suited for all standby power applications that require the highest levels of reliability and security.
FEATURES AND BENEFITSCONSTRUCTIONAPPLICATIONSCODE
FEATURES AND BENEFITS
20 years design life at floating condition @ 20 °C
Tubular positive plate with prolonged cycle life
High operational reliability
Lead calcium die cast grid with improved corrosion resistance capability
Dry charged package and delivery ensure longer shelf life
Explosive-proof with special designed vented plug
CONSTRUCTION
Positive plate Tubular plate with die cast Pb-Ca alloy grid
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Leaf shape rubber separator
Electrolyte - Dilute high purity sulphuric acid of 1.240 specific gravity
Battery container - SAN
Battery cover - ABS
Pillar seal - 100% factory tested, proven two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
