Voltage covers: 6V, 12V
Capacity: From 21-500W/Cell
Design life at floating condition: 12 years @ 20 °C/68 °F.

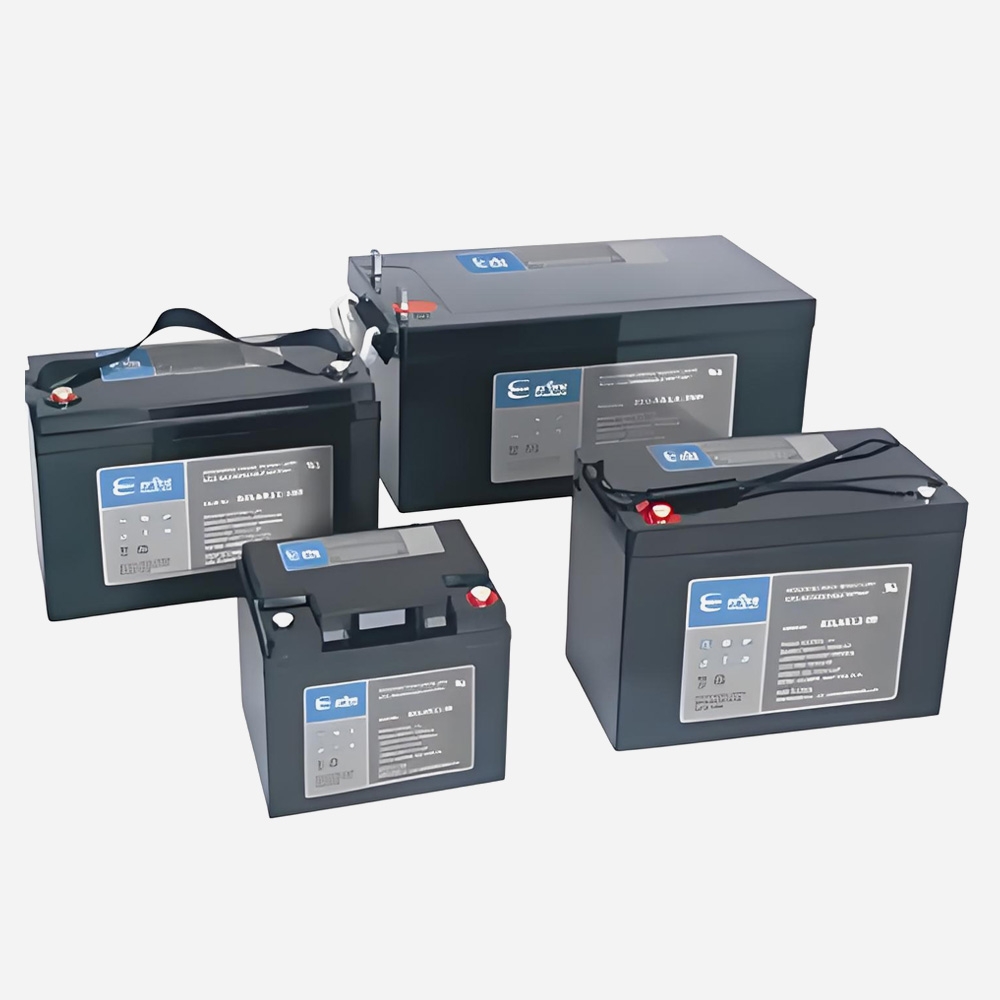

By combining proprietary high rate plate design with low internal resistance AGM separators, Evoque Power created the innovative High Rate range of batteries. This range offers extremely high power output at 15 minutes backup time with 12 years design life and is highly suited to high rate UPS and power switchgear applications.
FEATURES AND BENEFITSCONSTRUCTIONAPPLICATIONSCODE
FEATURES AND BENEFITS
30% increased power output at 15 minutes backup time
12 years design life at floating condition @ 20 °C
Optimized plate achieve low internal resistance
Wide operating temperature range from -15°C to 60°C
Low self-discharge rate and long shelf life (1 year at 25°C)
Excellent deep discharge recovery capability
CONSTRUCTION
Positive plate Special designed grid with Pb-Ca-Sn alloy
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Low internal resistance AGM separator
Electrolyte - Dilute high purity sulphuric acid
Battery container and cover - ABS
Pillar seal - 100% factory tested, proven two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
