Voltage covers: 2V
Capacity: From 200Ah to 3000Ah
Design life at floating condition: 20 years @ 20 °C/68 °F.

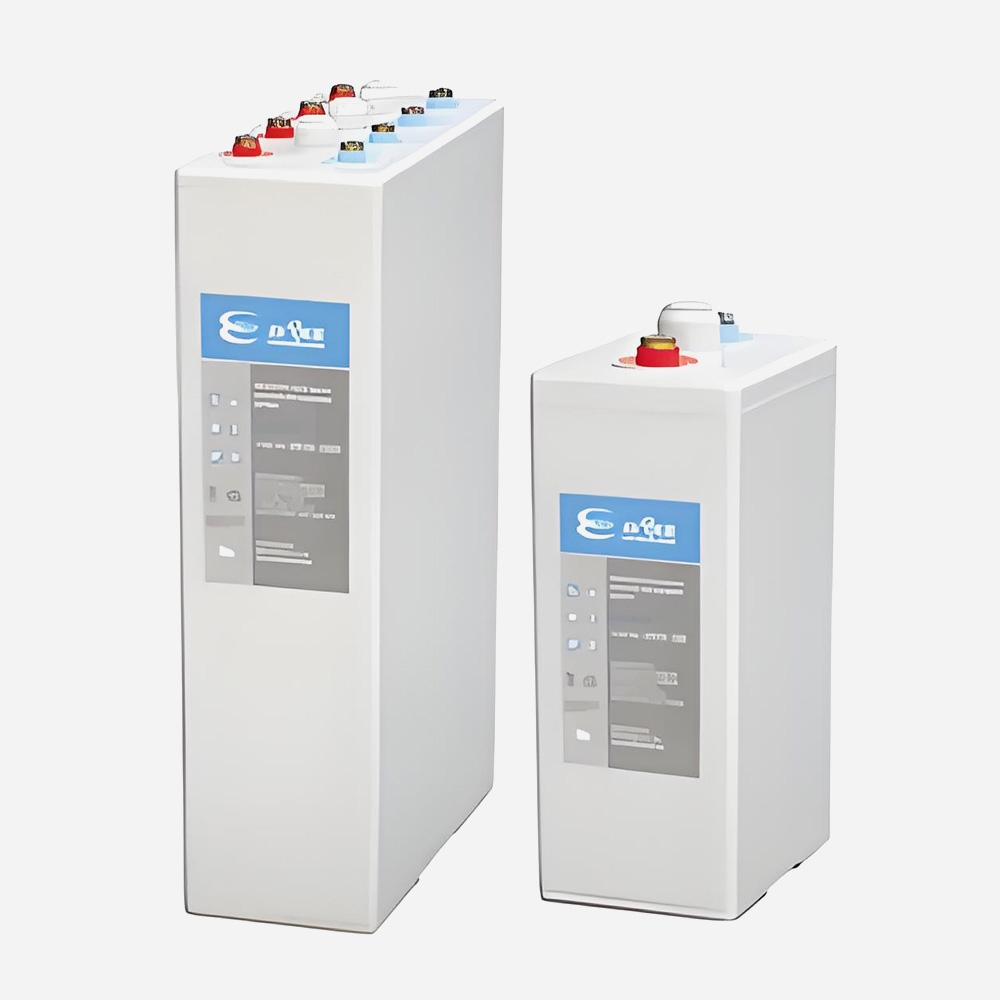

By combining the newly developed tubular positive plates with fumed gelled electrolyte, Evoque Power created the innovative OPzV range of batteries. The range offers 20 years design life and very high deep cycling capabilities. This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.
FEATURES AND BENEFITSCONSTRUCTIONAPPLICATIONSCODE
FEATURES AND BENEFITS
20 years design life at floating condition @ 20°C
Wide operating temperature range from -15°C to 60°C
Tubular positive plate with prolonged cycle life
Fumed Silica gel electrolyte
Lead Calcium die cast grid with improved corrosion resistance capability
Low self-discharge rate and long shelf life (1 year at 25°C)
Excellent deep discharge recovery capability
CONSTRUCTION
Positive plate - Tubular plate with die cast Pb-Ca alloy grid
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - leaf shape polymer separator
Electrolyte - Dilute high purity sulphuric acid with fumed Silica gel
Battery container and cover - ABS
Pillar seal - 100% factory tested, proven two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
