Voltage covers: 6V, 12V
Capacity: From 26Ah to 200Ah
Design life at floating condition: 12 years @ 20 °C/68 °F.

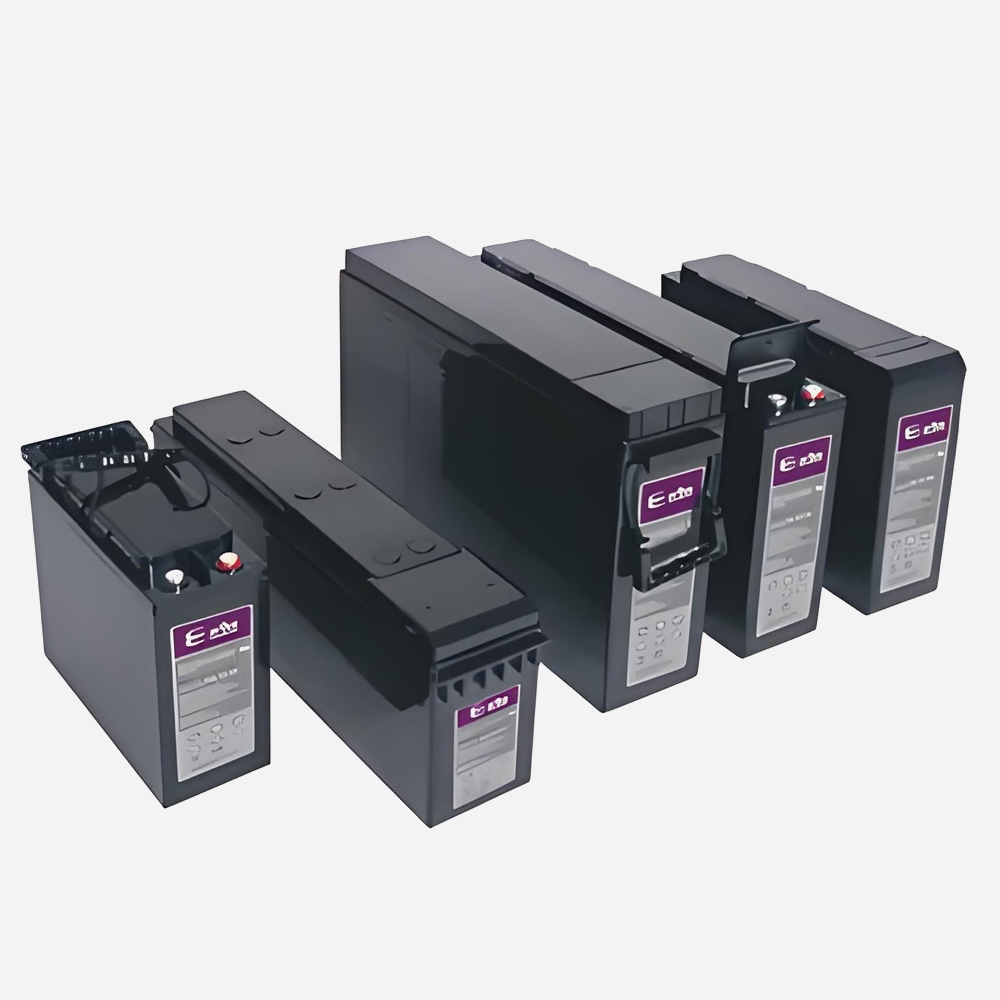

By combining the newly developed paste formula with up-to-date AGM structures, Evoque Power created the innovation FA range of batteries. This range features 12 years design life and front access connection for fast, easy installation and maintenance. This series is highly suited to telecom applications, UPS systems and other back up applications.
FEATURES AND BENEFITSCONSTRUCTIONAPPLICATIONSCODE
FEATURES AND BENEFITS
12 years design life at floating condition @ 20°C
Wide operating temperature range from -15°C to 60°C
Advanced paste formula with increased recharge efficiency
Front access terminal with standard width for 19'' and 23'' ETSI racks
30% decreased float current lead to excellent high temperature resistance
Thick flat plate with high Tin low Calcium alloy
Low self-discharge rate and long shelf life (1 year at 25°C)
Excellent deep discharge recovery capability
CONSTRUCTION
Positive plate - Thick high Sn low Ca grid minimize corrosion and prolong life
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for ultra low float current
Electrolyte - Dilute high purity sulphuric acid
Battery container and cover - ABS
Pillar seal - 100% factory tested, proven two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
