Voltage covers: 6V, 12V
Capacity: From 40Ah to 250Ah
Designed floating service life: 12 years @ 20 °C/68 °F.

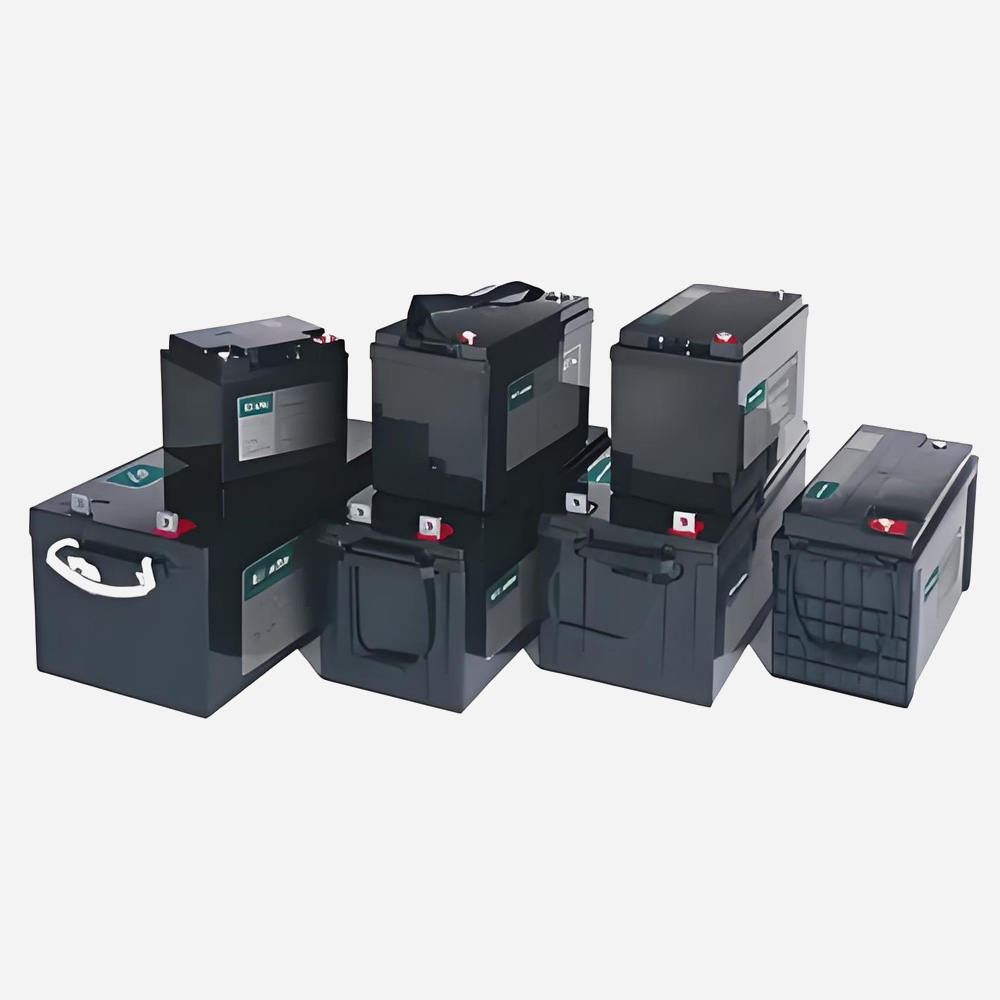

By combining a newly developed corrosion resistance alloy and advanced curing process, Evoque Power created a range of long life batteries - Duration range. The range features top terminal and offers 12 years design life. This series is highly suited to UPS system, switchgear, CATV and telecommunication system applications.
FEATURES AND BENEFITSCONSTRUCTIONAPPLICATIONSCODE
FEATURES AND BENEFITS
12 years design life at floating condition @ 20°C
Wide operating temperature range from -15°C to 60°C
Thick flat plate featuring high Tin low Calcium alloy
Operation in any position without acid leakage
Balanced design for both floating and cyclic operation
Low self-discharge rate and long shelf life
Excellent deep discharge recovery capability
CONSTRUCTION
Positive plate - High Sn low Ca grid to resist corrosion and prolong life
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for ultra low float current
Electrolyte - Dilute high purity sulphuric acid
Battery container and cover - ABS
Pillar seal - 100% factory tested, proven two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
