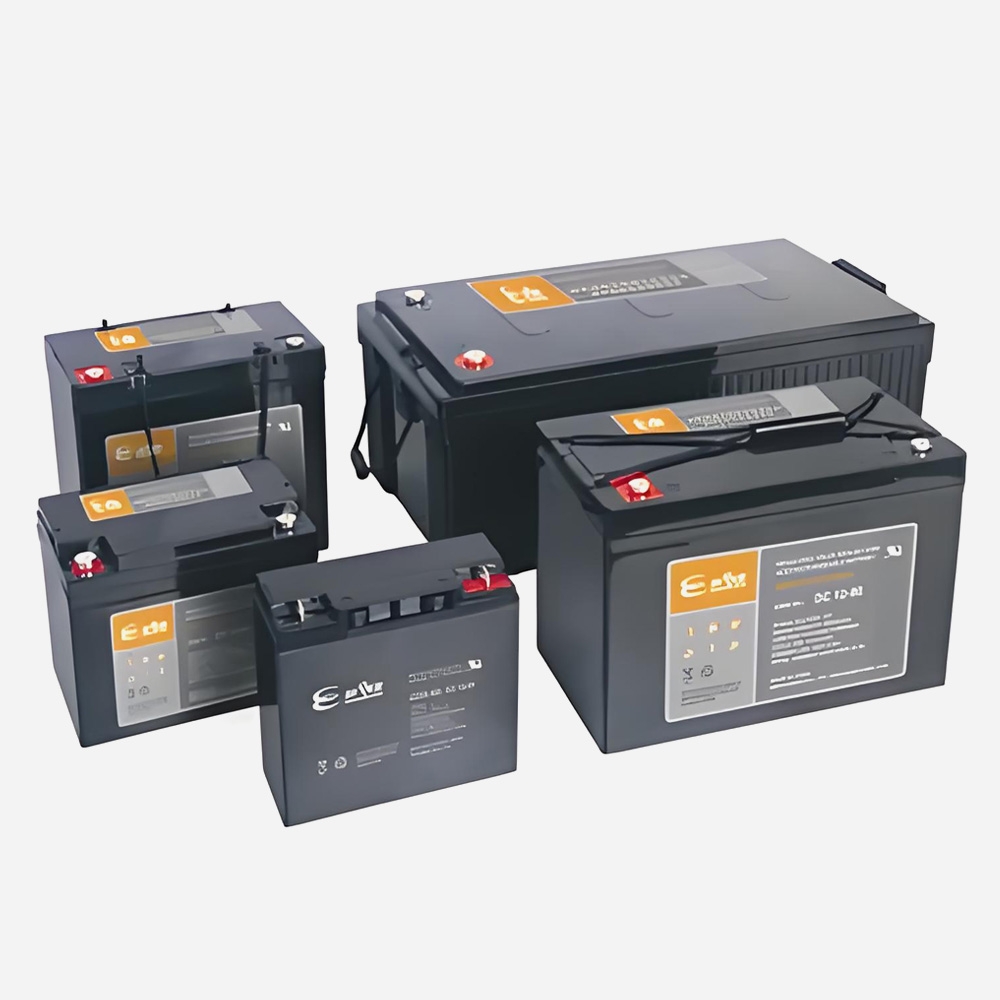

Name: DEEP CYCLE VRLA BATTERY(DC Series)
SKU: 3
Rating: 5 (1002 reviews)

FEATURES AND BENEFITS

70% more cyclic life through innovation at the PAM additives
Long life expectancy of 12 years at floating condition @ 20 °C
Thick flat plate with high Tin low Calcium alloy
Wide operating temperature range from -15 °C to 60°C
Low self-discharge rate and long shelf life (1 year at 25°C)
Excellent deep discharge recovery capability

CONSTRUCTION

Positive plate - Thick high Sn low Ca grid with special paste
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for high pressure cell design
Electrolyte - Dilute high purity sulphuric acid
Battery container and cover - ABS
Pillar seal - 100% factory tested, proven two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor

APPLICATIONS

Electric Powered Vehicles
Golf Cars and Buggies
Wheel Chairs
Power Tools
Electric Powered Toys
Control System
Medical Equipments
UPS systems
PV applications

CODE

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal Type
			Length		Width		Height		Total Height		Kg	Lb
			mm	in	mm	in	mm	in	mm	in	Kg	Lb
DC6-7.2	6	7.2	151	5.94	34	1.34	94	3.70	100	3.94	1.15	2.54	F1
DC6-7.5	6	7.5	151	5.94	34	1.34	94	3.70	100	3.94	1.3	2.87	F1
DC6-12	6	12	151	5.94	50	1.97	94	3.70	100	3.94	1.9	4.19	F2
DC6-100	6	100	194	7.64	170	6.69	205	8.07	210	8.27	16	35.3	T17
DC6-150	6	150	260	10.2	180	7.09	245	9.65	250	9.84	22	48.5	T19
DC6-180	6	180	307	12.1	169	6.65	220	8.66	225	8.86	25	55.1	T19
DC6-200	6	200	321	12.6	176	6.93	226	8.90	229	9.02	30	66.2	T19
DC6-225	6	225	243	9.57	187	7.36	253	9.96	276	10.9	34.2	75.4	T19
DC12-5	12	5	90	3.54	70	2.76	101	3.98	107	4.21	1.68	3.7	F1
DC12-7.2	12	7.2	151	5.94	65	2.56	95	3.74	101	3.98	2.2	4.85	F2
DC12-7.5	12	7.5	151	5.94	65	2.56	95	3.74	101	3.98	2.4	5.29	F2
DC12-9	12	9	151	5.94	65	2.56	111	4.37	117	4.61	3	6.62	F1
DC12-12	12	12	151	5.94	98	3.86	95	3.74	101	3.98	3.7	8.16	F2
DC12-20	12	20	181	7.13	76	2.99	167	6.57	167	6.57	5.9	13	T5
DC12-24	12	24	175	6.89	166	6.54	125	4.92	125	4.92	8.1	17.9	T5
DC12-28	12	28	165	6.50	126	4.96	175	6.89	182	7.17	8.6	19	T9
DC12-33	12	33	195	7.68	130	5.12	155	6.10	180	7.09	10.6	23.4	T7
DC12-35	12	35	195	7.68	130	5.12	155	6.10	180	7.09	11.2	24.7	T7
DC12-40	12	40	197	7.76	165	6.50	170	6.69	170	6.69	13.2	29.1	T17
DC12-55	12	55	230	9.06	138	5.43	208	8.19	211	8.31	17.2	37.9	T17
DC12-65	12	65	350	13.8	166	6.54	179	7.05	179	7.05	21.2	46.7	T17
DC12-75	12	75	260	10.2	168	6.61	211	8.31	214	8.43	23	50.7	T17
DC12-80	12	80	260	10.2	168	6.61	211	8.31	214	8.43	23.2	51.2	T17
DC12-90	12	90	306	12.0	169	6.65	211	8.31	214	8.43	26.3	58	T17
DC12-100	12	100	330	13.0	171	6.73	214	8.43	220	8.66	30	66.2	T17
DC12-120	12	120	406	16.0	174	6.85	208	8.19	233	9.17	35.8	78.9	T19
DC12-135	12	135	342	13.5	172	6.77	280	11.0	285	11.2	42	92.6	T19
DC12-150	12	150	485	19.1	172	6.77	240	9.45	240	9.45	44.5	98.1	T19
DC12-180	12	180	494	19.4	206	8.11	209	8.23	235	9.25	55	121	T19
DC12-200	12	200	522	20.6	238	9.37	218	8.58	221	8.70	61.5	136	T19
DC12-230	12	230	521	20.5	269	10.6	203	7.99	206	8.11	62.5	138	T19
DC12-250	12	250	521	20.5	269	10.6	220	8.66	223	8.78	72.5	160	T19
