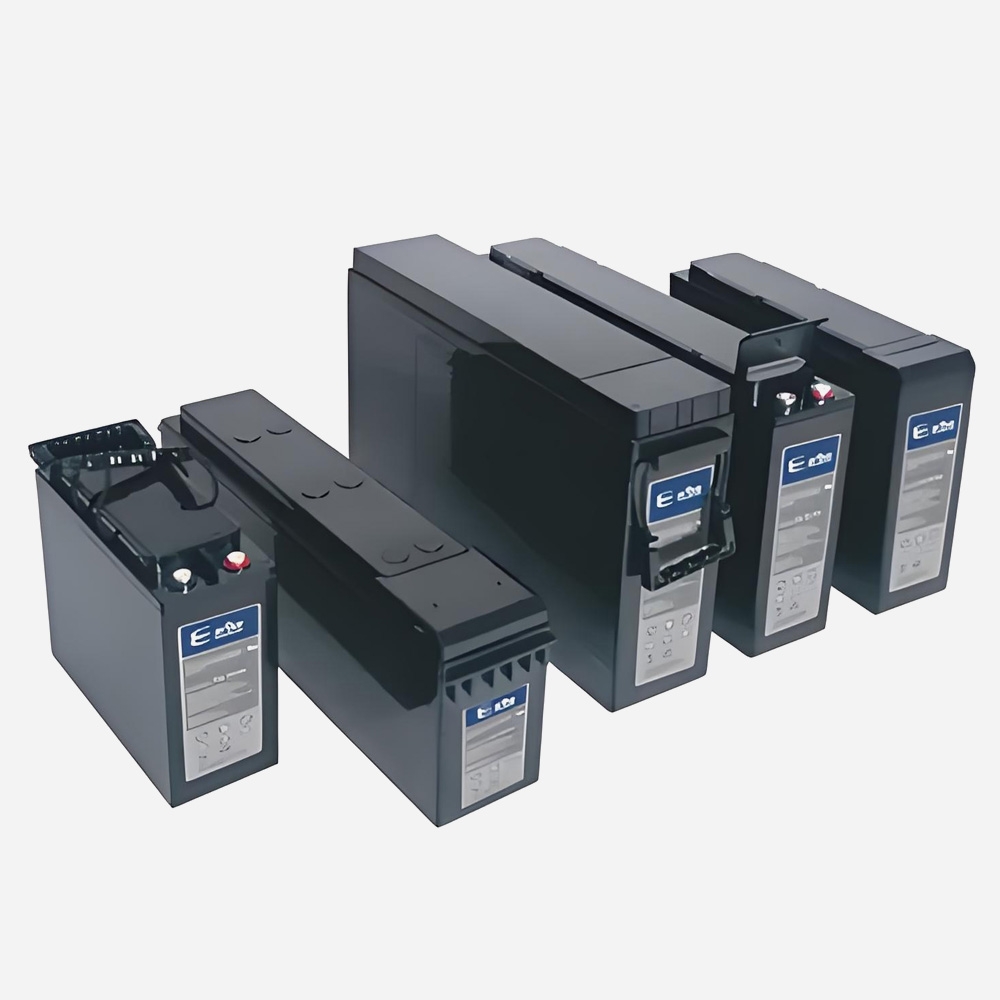

FAG SERIES VRLA BATTERY

FAG SERIES VRLA BATTERY

FAG SERIES VRLA BATTERY

Voltage covers: 6V, 12V
Capacity: From 26Ah to 200Ah
Design life at floating condition: 15 years @ 20 °C/68 °F.

By combining the newly developed nano gel electrolyte with up-to-date AGM structures, Evoque Power created the innovation FAG range of batteries. This range features 15 years design life and front access connections for fast, easy installation and maintenance. This range battery is highly suited to telecom outdoor applications, renewable energy systems and other harsh environment applications.

FEATURES AND BENEFITSCONSTRUCTIONAPPLICATIONSCODE

FEATURES AND BENEFITS

15 years design life at floating condition @ 20°C
Wide operating temperature range from -15°C to 60°C
Nano gel electrolyte eliminate the acid stratification and prolong cycle life
Front access terminal with standard width for 19'' and 23'' ETSI racks
30% decreased float current lead to excellent high temperature resistance
Thick flat plate with high Tin low Calcium alloy
Low self-discharge rate and long shelf life (1 year at 25°C)
Excellent deep discharge recovery capability

CONSTRUCTION

Positive plate - Thick high Sn low Ca grid minimize corrosion and prolong life
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for ultra low float current
Electrolyte - Dilute high purity sulphuric acid with nano gel
Battery container and cover - ABS
Pillar seal - 100% factory tested, proven two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor

APPLICATIONS

Telecom
Control Equipments
UPS systems
Communication Equipments
Medical Equipments
Emergency Power Systems

CODE

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal Type
			Length		Width		Height		Total Height		Kg	Lb
			mm	in	mm	in	mm	in	mm	in	Kg	Lb
FAG6-200	6	200	363	14.3	125	4.92	250	9.84	250	9.84	35	77.2	T21
FAG12-26	12	26	250	9.84	97	3.81	146.5	5.76	148.5	5.85	9.5	20.9	T18
FAG12-50	12	50	390	15.4	105	4.13	200	7.87	200	7.87	21.3	47	T20
FAG12-55	12	55	277	10.9	105	4.13	222	8.74	222	8.74	18.3	40.4	T20
FAG12-75	12	75	562	22.1	114	4.49	189	7.44	189	7.44	24.3	53.6	T24
FAG12-85	12	85	390	15.4	105	4.13	270	10.6	270	10.6	31	68.4	T20
FAG12-100A	12	100	508	20	110	4.33	238.5	9.39	238.5	9.39	35.6	78.5	T13
FAG12-100B	12	100	560	22	110	4.33	233	9.17	233	9.17	35.6	78.5	T13
FAG12-100H	12	100	394	15.5	110	4.33	285	11.2	285	11.2	34.5	76.1	T6
FAG12-125	12	125	558	22.0	125	4.92	270	10.6	270	10.6	46	101	T20
FAG12-150A	12	150	551	21.7	110	4.33	287	11.3	287	11.3	46.8	103.2	T6
FAG12-150B	12	150	560	22	110	4.33	280	11	280	11	43.8	96.6	T13
FAG12-160	12	160	546	21.5	125	4.92	315	12.4	315	12.4	52	115	T19
FAG12-180	12	180	560	22	126	4.96	280	11	280	11	51.2	112.9	T13
FAG12-200	12	200	522	20.6	238	9.37	218	8.58	221	8.70	64	141	T19
