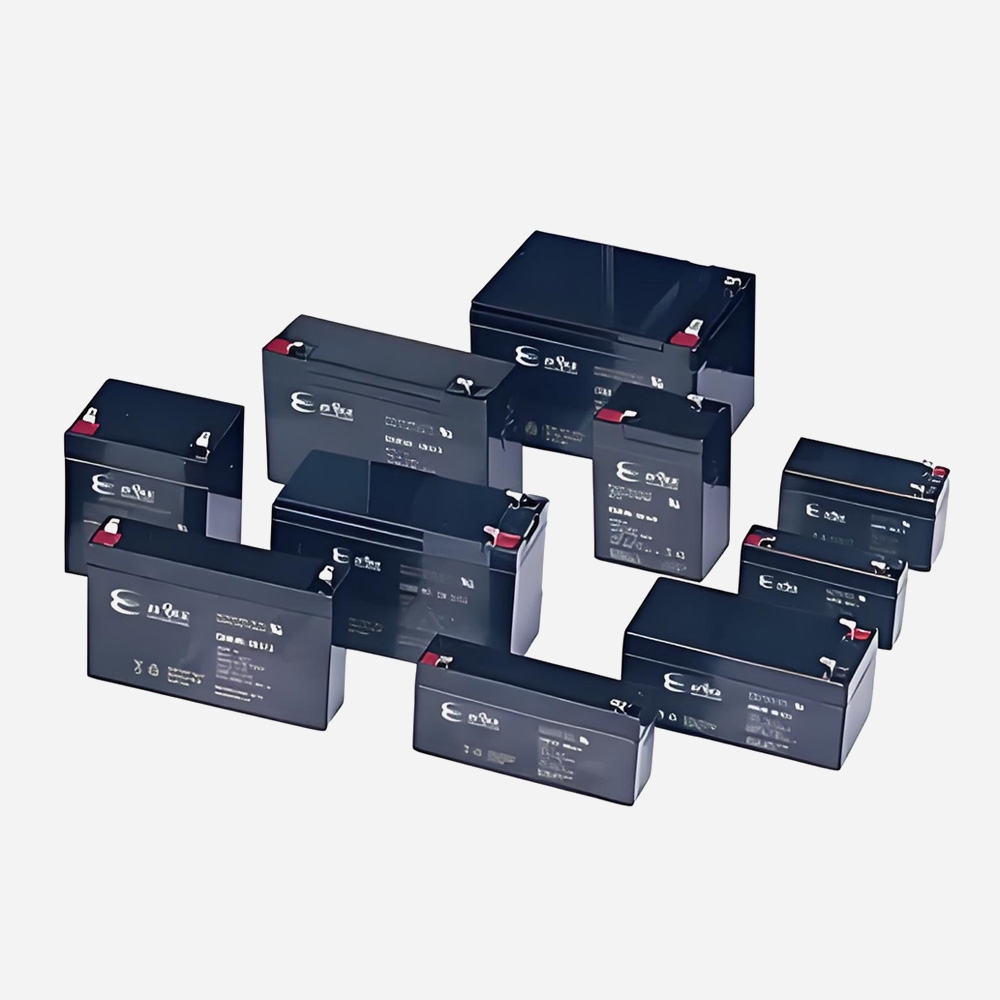

Name: GENERAL PURPOSE VRLA BATTERY (EP Series)
SKU: 1
Rating: 5 (1000 reviews)

FEATURES AND BENEFITS

5 years design life at floating condition
Wide operating temperature range from -15 °C to 60°C
Can be used at vertical or horizontal orientation
Balanced design for both floating and cyclic operation
Low self-discharge rate and long shelf life

CONSTRUCTION

Positive plate - Standard Pb-Ca-Sn alloy
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - AGM separator
Electrolyte - Dilute high purity sulphuric acid
Battery container and cover - ABS
Pillar seal - 100% factory tested, proven two layers epoxy resin seal
Relief valve - Self sealing rubber cap valve with proven reliability

APPLICATIONS

Alarm Systems
Communication Equipments
Control Equipments
Security Systems
Medical Equipments
UPS systems
Power Tools
Toys
Emergency Power Systems

CODE

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal Type
			Length		Width		Height		Total Height		Kg	Lb
			mm	in	mm	in	mm	in	mm	in	Kg	Lb
EP2-4.5	2	4.5	48	1.89	25	0.98	101	3.98	106	4.17	0.28	0.62	F1
EP4-0.5	4	0.5	39	1.54	14	0.55	50	1.97	50	1.97	0.07	0.15	Tab
EP4-1.0	4	1	42	1.66	34	1.34	50	1.97	50	1.97	0.15	0.33	F1
EP4-3.5	4	3.5	90	3.54	34	1.34	60	2.36	66	2.60	0.48	1.06	F3
EP4-4.5	4	4.5	48	1.89	48	1.89	102	4.02	108	4.25	0.52	1.15	F1
EP6-0.5	6	0.5	57	2.25	14	0.55	51	2.01	51	2.01	0.1	0.22	Tab
EP6-1.0	6	1	51	2.01	42	1.65	51	2.01	57	2.24	0.26	0.57	F3
EP6-1.3	6	1.3	97	3.82	24	0.94	52	2.05	58	2.28	0.3	0.66	F3
EP6-2.8	6	2.8	66	2.60	33	1.30	97	3.82	104	4.09	0.6	1.32	F1
EP6-3.2	6	3.2	125	4.92	33	1.30	61	2.40	67	2.64	0.63	1.39	F1
EP6-3.4	6	3.4	134	5.28	35	1.38	61	2.40	67	2.64	0.66	1.46	F3
EP6-4.0	6	4.2	70	2.76	47	1.85	101	3.98	107	4.21	0.68	1.70	F1
EP6-4.5	6	4.5	70	2.76	47	1.85	101	3.98	107	4.21	0.75	1.76	F1
EP6-7.2	6	7.2	151	5.94	34	1.34	94	3.70	100	3.94	1.11	2.45	F1
EP6-7.5	6	7.5	151	5.94	34	1.34	94	3.70	100	3.94	1.25	2.76	F1
EP6-8.0	6	8	98	3.86	56	2.20	117	4.61	119	4.69	1.35	2.98	F1
EP6-12.0	6	12	151	5.94	50	1.97	94	3.70	100	3.94	1.85	4.08	F2
EP10-2CR	10	2	115	4.53	26	1.02	65	2.56	65	2.56	0.54	1.19	T25
EP12-0.8	12	0.8	96	3.78	25	0.98	62	2.44	62	2.44	0.35	0.77	Tab
EP12-1.3	12	1.3	97	3.82	43	1.69	52	2.05	58	2.08	0.58	1.28	F3
EP12-2CR	12	2	144	5.67	24	0.94	65	2.56	65	2.56	0.65	1.43	T25
EP12-2.2	12	2.2	178	7.01	35	1.38	61	2.40	67	2.64	0.86	1.9	F3
EP12-2.3LCR	12	2.3	201	7.91	24	0.84	62	2.44	62	2.44	0.72	1.59	T25
EP12-2.3CR	12	2.3	182	7.17	24	0.94	62	2.44	62	2.44	0.71	1.57	T25
EP12-3.4	12	3.4	134	5.28	67	2.64	61	2.40	67	2.64	1.3	2.87	F3
EP12-4.2	12	4.2	90	3.54	70	2.76	101	3.98	107	4.21	1.5	3.31	F1
EP12-4.5	12	4.5	90	3.54	70	2.76	101	3.98	107	4.21	1.6	3.53	F1
EP12-5.0	12	5	90	3.54	70	2.76	101	3.98	107	4.21	1.68	3.7	F1
EP12-7.0	12	7	151	5.94	65	2.56	95	3.74	101	3.98	2.1	4.63	F2
EP12-7.2	12	7.2	151	5.94	65	2.56	95	3.74	101	3.98	2.2	4.85	F2
EP12-7.5	12	7.5	151	5.94	65	2.56	95	3.74	101	3.98	2.4	5.29	F2
EP12-9	12	9	151	5.94	65	2.56	111	4.37	117	4.61	3	6.62	F1
EP12-12	12	12	151	5.94	98	3.86	95	3.74	101	3.98	3.7	8.16	F2
EP12-18	12	18	181	7.13	76	2.99	167	6.57	167	6.57	5.25	11.6	T5
EP12-26	12	26	175	6.89	166	6.54	125	4.92	125	4.92	8.0	17.6	T5
EP12-28	12	28	165	6.50	126	4.96	175	6.89	182	7.17	8.5	18.7	T9
EP12-33	12	33	195	7.68	130	5.12	155	6.10	180	7.09	10.3	22.7	T7
