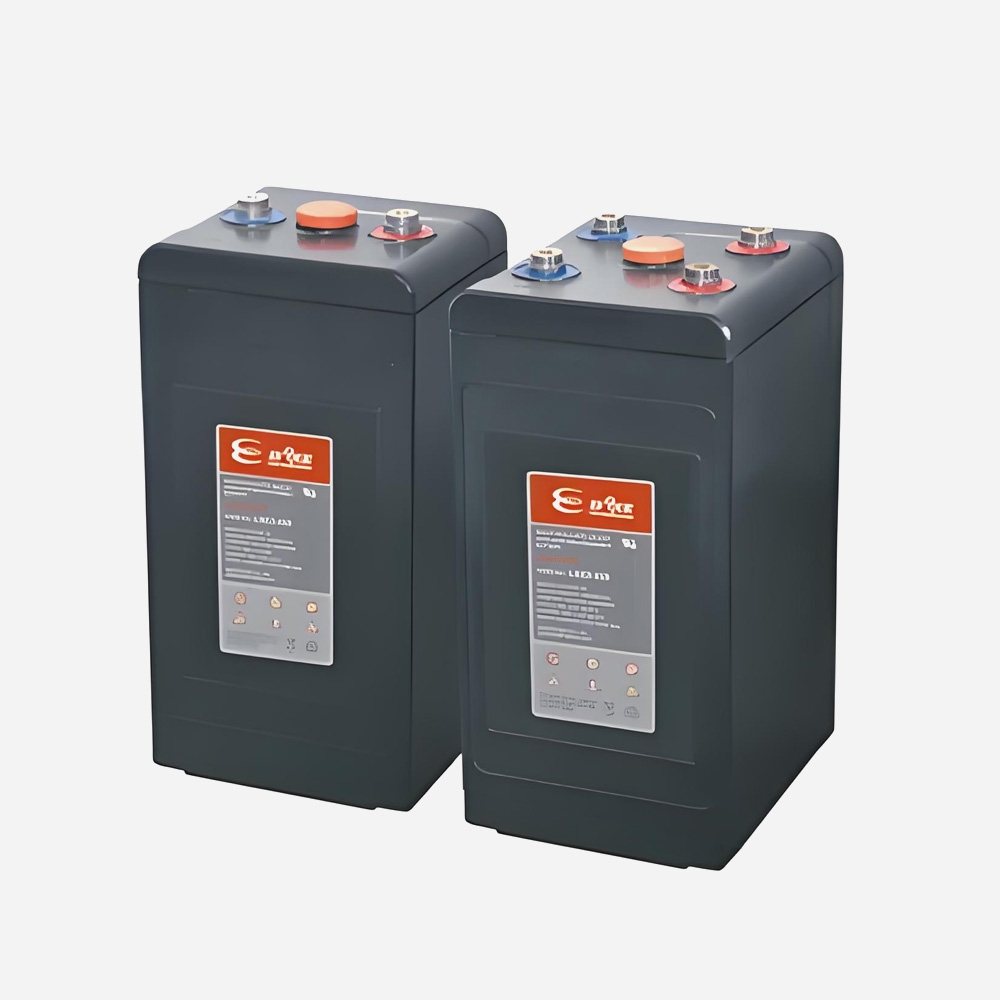

EPX SERIES VRLA BATTERY

EPX SERIES VRLA BATTERY

EPX SERIES VRLA BATTERY

Voltage covers: 2V
Capacity: From 50Ah to 3000Ah
Design life at floating condition: 20 years @ 20 °C/68 °F.

By combining the service life reliability of a flooded battery with the performance energy density of a valve-regulated battery, Evoque Power created a true long service life VRLA battery - the EPX range. This range offers 20 years design life with very good cycling capability, and it is highly suited to telecom, UPS, renewable energy system, power stations and similar applications.

FEATURES AND BENEFITSCONSTRUCTIONAPPLICATIONSCODE

FEATURES AND BENEFITS

20 years design life at floating condition @ 20°C
Wide operating temperature range from -15°C to 60°C
High integrity, dual pillar seal design
Low float current designed paste enables significant electrical cost saving
Thick positive flat plate design with high Tin low Calcium alloy
Low self-discharge rate and long shelf life (1 year at 25°C)
High gas recombination efficiency as high as 99.9%

CONSTRUCTION

Positive plate - Thick high Sn low Ca grid to resist corrosion and prolong life
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for ultra low float current
Electrolyte - Dilute high purity sulphuric acid
Battery container and cover - ABS
Pillar seal - 100% factory tested, proven two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor

APPLICATIONS

Telecom
Electric Utilities
Control Equipments
Security Systems
Medical Equipments
UPS systems
Railroad Utilities
Photovoltaic Systems
Renewable Energy Systems

CODE

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal Type
			Length		Width		Height		Total Height		Kg	Lb
			mm	in	mm	in	mm	in	mm	in	Kg	Lb
EPX2-50	2	50	161	6.34	50	1.97	166	6.54	166	6.54	3	6.62	T17
EPX2-100	2	100	170	6.69	72	2.83	205	8.07	212	8.35	6	13.2	T6
EPX2-150	2	150	170	6.69	98	3.86	205	8.07	212	8.35	8.5	18.7	T7
EPX2-200	2	200	170	6.69	110	4.33	328	12.9	350	13.8	12.7	28	T11
EPX2-250	2	250	170	6.69	110	4.33	328	12.9	350	13.8	14	30.9	T11
EPX2-300	2	300	170	6.69	150	5.91	328	12.9	350	13.8	17.7	39	T11
EPX2-400	2	400	210	8.27	175	6.89	330	13	350	13.8	25.7	56.7	T11
EPX2-500	2	500	240	9.45	175	6.89	330	13	350	13.8	28.5	62.8	T11
EPX2-600	2	600	300	11.8	175	6.89	330	13	350	13.8	35	77.2	T11
EPX2-800	2	800	410	16.1	175	6.89	330	13	350	13.8	50.1	110.5	T11
EPX2-1000	2	1000	475	18.7	175	6.89	328	12.9	350	13.8	57	126	T11
EPX2-1200	2	1200	475	18.7	175	6.89	328	12.9	350	13.8	63.7	140.5	T11
EPX2-1500	2	1500	403	15.9	354	13.9	339	13.3	349	13.7	94	207	T11
EPX2-2000	2	2000	490	19.3	350	13.8	339	13.3	349	13.7	119	262	T11
EPX2-3000	2	3000	709	27.9	350	13.8	337	13.3	347	13.66	181	399	T11
